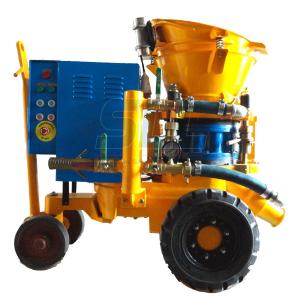

Swimming Pool Spray Concrete Equipment Dry Mix Shotcrete Machine SPZ-5
Product Introduction
Dry Mix Shotcrete Machine:
1. SPZ series shotcrete machine can be used to spray dry and half wet concrete material and so on.
2. We have 20 years produce expericence with advanced technology, rational structure, stable performance and long service life
3. SPZ series shotcrete machine is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
Technical Parameters of SPZ-5 Dry Mix Concrete Shotcrete Machine:
| Model | SPZ-5 | SPZ-5D | SPZ-5A |
| Drive Type | Electric Type | Diesel Engine Type | Air Motor Type |
| Output | 5.5 m3/h | 5.5 m3/h | 5.5 m3/h |
| Max.conv.dist | 200 | 200 | 200 |
| Water cement ratio | < 0.4 | < 0.4 | < 0.4 |
| Max.Aggregate.size | 20mm | 20mm | 20mm |
| Hose inner size | φ51 mm | φ51 mm | φ51 mm |
| Operating air pressure | 0.2-0.6 MPa | 0.2-0.6 MPa | 0.2-0.6 MPa |
| Air consumption | 7-8 m3/min | 7-8 m3/min | 16-18m3/min |
| Motor power | 5.5 kW | 22hp | --- |
| Dimension(LxWxH) | 1350x750x1020mm | 2150x750x1020mm | 1350x750x1020mm |
| Weight | 780kg | 890kg | 810kg |
| Voltages | 220V/380V/400V/415V/ 440V/660V 50Hz/60Hz | | |
| Basic chassis | 1. Tyre; 2. Skid; 3. Rail-wheel |
Price And Quanlity:
1. We are direct manufacturer of kinds of construction machinery,so the factory price will be good performance
2. And, about the machine electric motor, electrical apparatus element, flow output also adjustable, electric voltage etc, can customize.
3. About the shotcrete machine, many details and dessign we are modified every year according to the customers needs ,for example dry mix shotcrete machine dedusting, flow adjust through transducer, feeding machine for shotcrete machine etc.
Applications Of Dry shotcrete machine
1. Used for dry mix concrete spraying operation.
2. Shotcrete for Civil Underground Foundation , Express-Way Construction, Railway Construction;
3. Shotcrete for building surface;
4. Shotcrete for Tunneling , Mining ,Hydropower Project;
5. Shotcrete for Slope Stabilization.
For example, build up the swimming pool.
We also have wet shotcrete machine, shotcrete pump, large capacity concrete spraying system (automatic shotcrete machine with robot arm),concrete pump, mortar mixer, mortar pump, mortar spraying plaster machine, grouting mixer, grouting pump, hand grouting pump, hose pump
Features of shotcrete concrete machine
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life .
4. Low pressure and low speed vortex air transport.
5. Well compact and seal, small dust, durable rubber plate.
6. Apply to steel fiber or chemical fiber concrete spraying.
Machine Accessories
Matching Spare Parts of Dry Shotcrete Machine:
Long Joint
Joint Clamp
Conveying hose
Upper sealing plate
Lower sealing plate
Rubber Elbow
Taper sleeve
Rubber Chamber
Nozzle and seat
Nozzle
